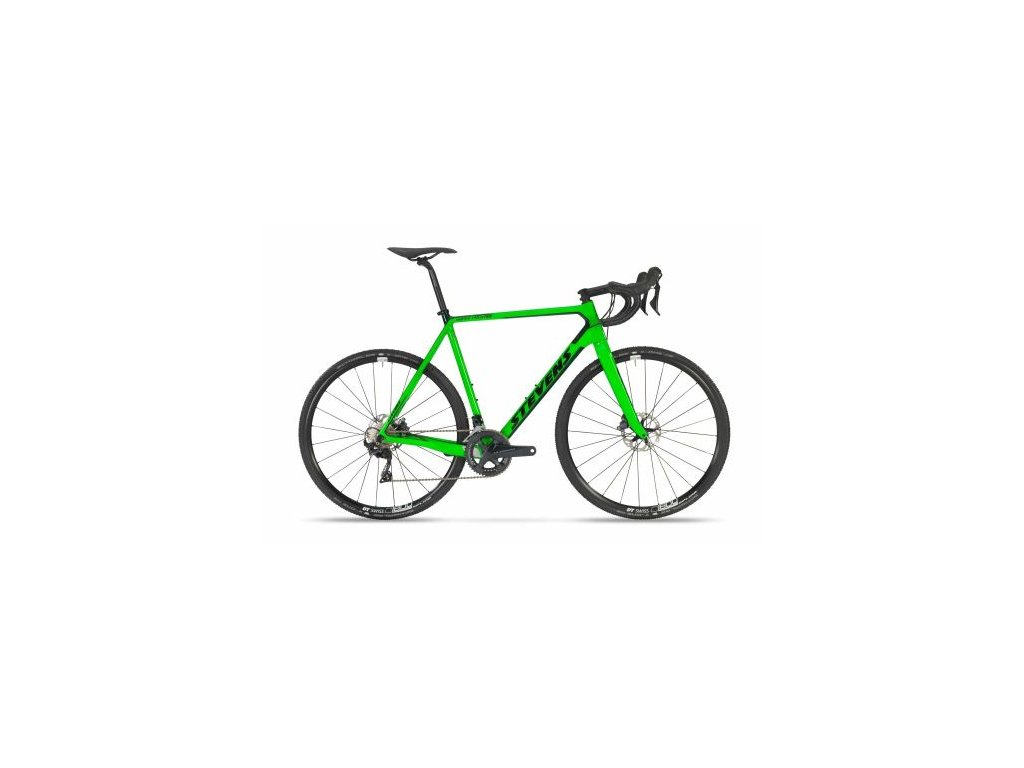

STEVENS 2019 SUPER PRESTIGE ZELENÁ

Chassis

Frame

Carbon SL Fiber

• Axle: QR12x142
• Brake: flatmount disc
• BB: Pressfit BB86
• Front derailleur mount: braze-on
• Cable routing: internal

Přední vidlice

STEVENS Full Carbon SL

• Tapered Steerer 1 1/8" - 1 1/2"
• Axle: QR12x100
• Brake: flatmount disc

Hlavové složení

STEVENS Race Taper 1 1/8"-1 1/2"

• Upper bearing cup: IS42/28.6
• Lower bearing cup: IS52/40

Brzdy

Shimano Ultegra

• BR-R8070
• Hydraulic disc brake
• Flatmount standard
• Rotor: SM-RT81
• Rotor size: 160/160 mm
• Center-Lock

Pohon

Kliky

Shimano Ultegra Cyclocross

• FC-R8000
• 46-36 T
• BB type: Pressfit BB86 / Hollowtech II

Přesmykač

Shimano Ultegra

• FD-R8000-F

Přehazovačka

Shimano Ultegra RX

• RD-RX800-GS
• 11-speed
• Total capacity: 39 T

Řetěz

Shimano CN-HG701

Kazeta

Shimano Ultegra

• CS-R8000
• 11-speed
• Combination: 11-12-13-14-15-17-19-21-23-25-28 T

Gear ratio

2.78 - 9.03 m, 2*11

Kola

Zapletená kola

DT Swiss C1800 Spline

• ETRTO: 22 x 622

Pneumatiky

Schwalbe X-One Allround MicroSkin

• Tire size: 33-622
• Foldable
• OneStar Compound
• Tubeless Easy

Cockpit

Řidítka

Oxygen Scorpo Aero

• Drop: 130 mm
• Reach: 80 mm
• Clamp: 31.8 mm

Představec

Oxygen Scorpo Road

• Handlebar clamp: 31.8 mm
• Angle: -6°

Sedlo

Oxygen Triton

Sedlovka

Scorpo Carbon Road

• Length: 300 mm
• Diameter: 27.2 mm
• Insertion depth: min. 80 mm

Brzdové-řadicí páky

Shimano Ultegra

• ST-R8020
• 11-speed

Data

Hmotnost

8.2 kg

Velikost

50, 52, 54, 56, 58, 60 cm

Barva

Ink Black | Neon Green

Laden weight

115 kg

• Bike incl. rider, clothing and luggage
